KEL-DPF-OD | Pyramid cable entry grommets for extreme conditions
for single cables with diam. up to 60 mm, M25-M75 / IP66/IP68 / UL Type 4X
The KEL-DPF-OD is ideally suited for applications in which cable entries are permanently exposed to strong UV radiation, weathering and temperature fluctuations. Compared to standard versions, it offers increased material resistance and extended service life in outdoor environments. Thanks to its approvals, it is particularly suitable for the use in photovoltaic systems (UL 6703, UL 6703A, UL 3703, UL 1703).
F1 listing (UV and weather resistance according to UL 746C): The long-term durability means an increased service life without embrittlement or material fatigue.
The KEL-DPF-OD was developed particularly for routing large or unknown sizes of unterminated cables into control panels, containers or machinery (max. cable diameter 60 mm). Due to the flexibility and unique pyramid shape, cable entry and flexible positioning is much easier compared to using conventional cable glands. Also perfect for bundling or restraining large cables.
It is recommended that additional strain relief be provided for cables using cable ties.
Cutting of DPF-OD grommets: Cable diameter less 20%. The corresponding diameters are marked on the grommet.
Part No.
62657
Specifications
Flame class
UL94-V0, self-extinguishing
Max. operating temperature
120 C°
Properties
UV-resistant, silicone free
Min. operating temperature
-40 C°
Advantages and benefits
Reliable protection in extreme climatic environments
F1 listing (UV and weather resistance according to UL 746C)
Quick installation and secure fit thanks to screw connection with a locknut
Very large variable sealing range (3 - 60 mm)
Angled insertion of inflexible cables is possible
Certified protection IP66/IP68 (in accordance with EN 60529)
Suitable for metric cut-outs M25 - M75
The locknut is included in the shipment
Product types and sizes

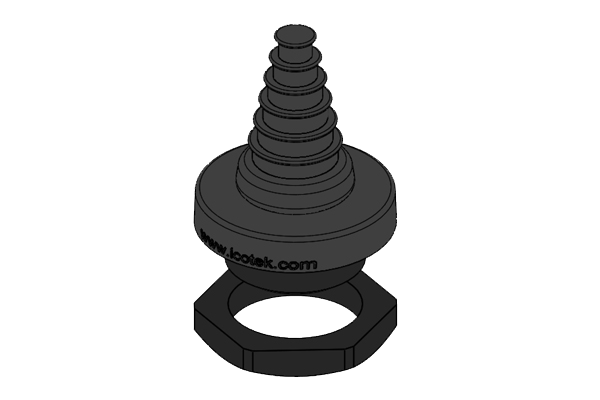

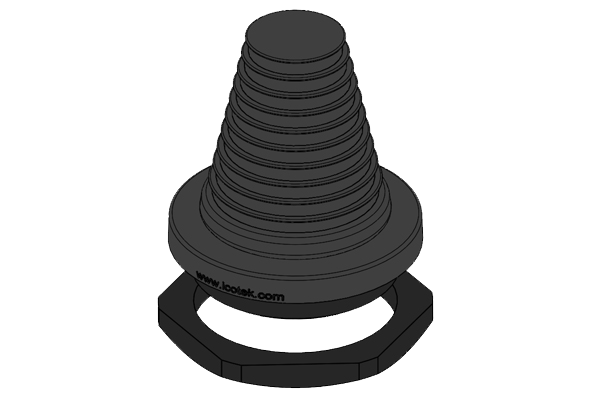

KEL-DPF 63|27-50 OD
Part No.
62656
EAN
4251269338601
Package quantity
5
Mounting options
Fasten with locknut
KEL-DPF 50|22-36 OD
Part No.
62655
EAN
4251269338595
Package quantity
5
Mounting options
Fasten with locknut

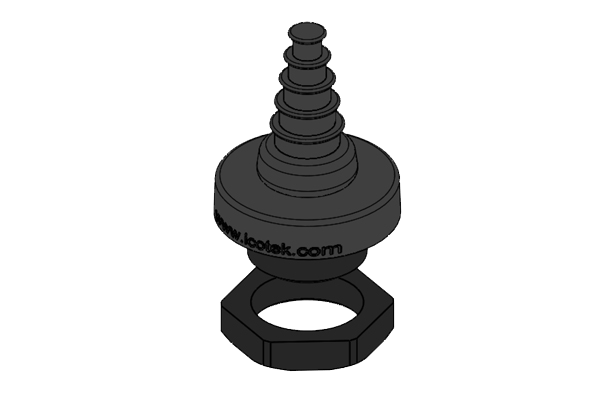

KEL-DPF 25|3-12 OD
Part No.
62652
EAN
4251269338564
Package quantity
5
Mounting options
Fasten with locknut

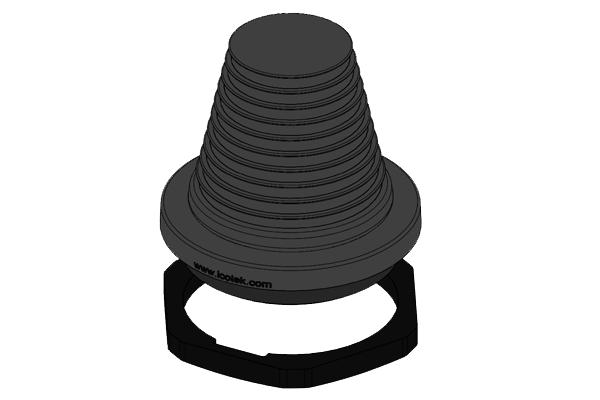

KEL-DPF 75|39-60 OD
Part No.
62657
EAN
4251269338618
Package quantity
1
Mounting options
Fasten with locknut

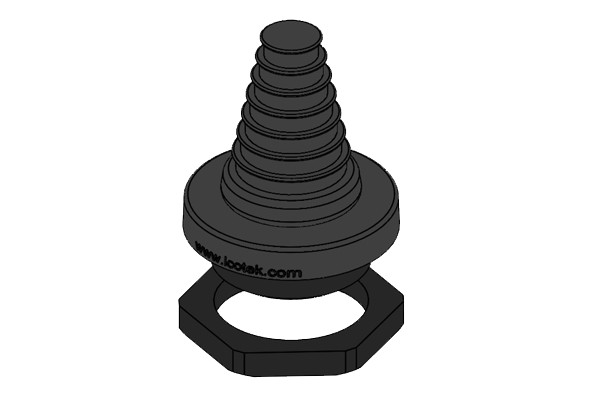

KEL-DPF 40|12-27 OD
Part No.
62654
EAN
4251269338588
Package quantity
5
Mounting options
Fasten with locknut
KEL-DPF 32|6-18 OD
Part No.
62653
EAN
4251269338571
Package quantity
5
Mounting options
Fasten with locknut
The KEL-DPF-OD is ideally suited for applications in which cable entries are permanently exposed to strong UV radiation, weathering and temperature fluctuations. Compared to standard versions, it offers increased material resistance and extended service life in outdoor environments. Thanks to its approvals, it is particularly suitable for the use in photovoltaic systems (UL 6703, UL 6703A, UL 3703, UL 1703).
F1 listing (UV and weather resistance according to UL 746C): The long-term durability means an increased service life without embrittlement or material fatigue.
The KEL-DPF-OD was developed particularly for routing large or unknown sizes of unterminated cables into control panels, containers or machinery (max. cable diameter 60 mm). Due to the flexibility and unique pyramid shape, cable entry and flexible positioning is much easier compared to using conventional cable glands. Also perfect for bundling or restraining large cables.
It is recommended that additional strain relief be provided for cables using cable ties.
Cutting of DPF-OD grommets: Cable diameter less 20%. The corresponding diameters are marked on the grommet.
